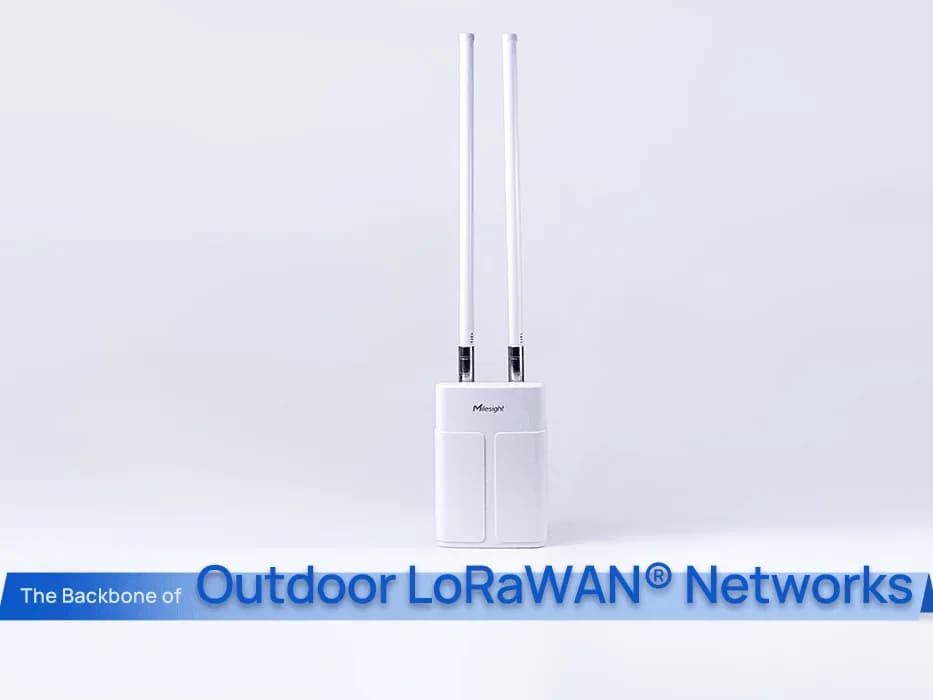

UG67 Outdoor LoRaWAN® Gateway

The Milesight UG67 Outdoor LoRaWAN® Gateway is an IP67-rated 8-channel gateway designed for large-scale IoT deployments supporting 2000+ nodes. Powered by Semtech SX1302, it delivers full-duplex communication and support for all LoRaWAN® Classes A/B/C. With coverage up to 15 km in rural areas and 2 km in urban environments, the UG67 is ideal for smart cities, smart buildings, agriculture, and industrial IoT applications across Turkey. Request a quote for price and lead time; we reply in writing within 24 hours.

Key features

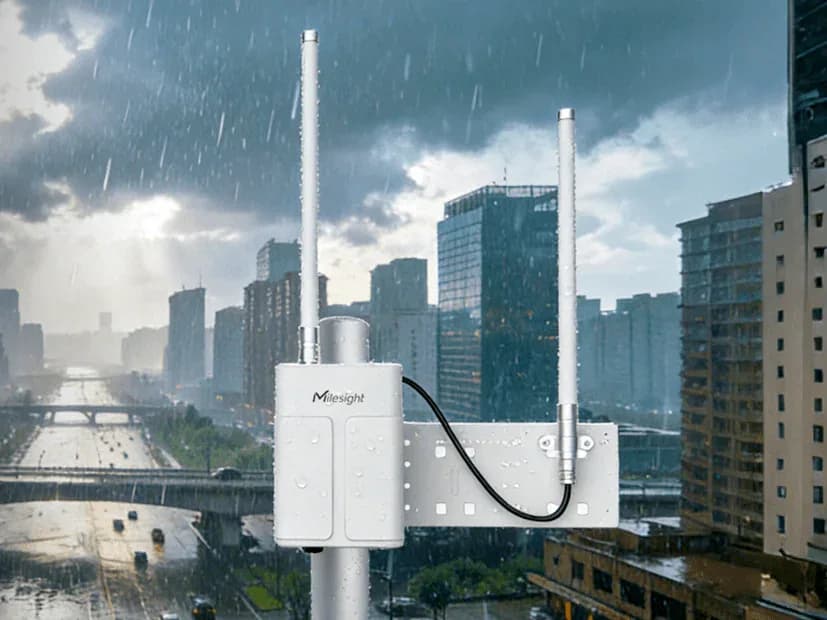

• IP67 Rating: Reliable operation in rain, dust, and harsh outdoor environments
• Wide Operating Temperature: -40°C to +70°C for extreme weather resilience
• SX1302 Powered: Semtech SX1302 enables full-duplex communication and all LoRaWAN® Classes (A/B/C)
• High Node Capacity: Supports 2000+ end devices for large-scale deployments
• Extended Coverage: Up to 15 km in rural areas, 2 km in urban environments
• Multiple Backhaul Options: Ethernet, Cellular, and Wi-Fi with failover and failback
• Power Outage Alert: Built-in Supercapacitor with 1-minute backup
• Global Frequency Plans: U864, IN865, EU868, US915, AU915, KR920, AS923-1/2/3/4

Benefits

• Listen Before Talk (LBT): Optimizes frequency usage and ensures compliance with spectrum-sharing regulations
• Noise Analyzer: Detects environmental interference and identifies cleanest channels for optimal communication

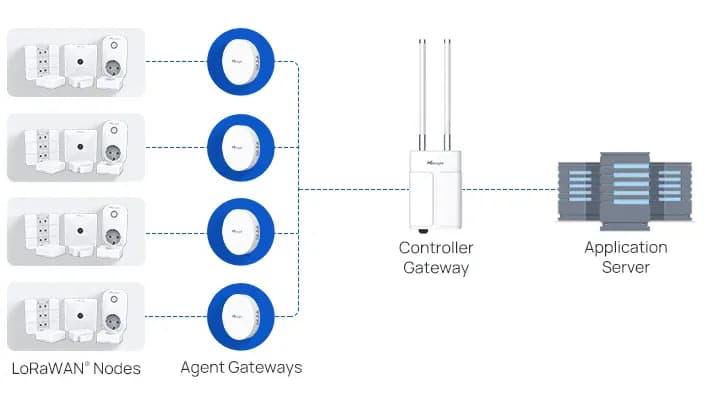

• Gateway Fleet Management: Group multiple gateways into a logical fleet for centralized management and extended coverage
• Multicast Support: Send downlink commands to multiple devices simultaneously
• BMS Integration: Seamless integration with Building Management Systems without protocol changes
• Edge Computing: Python and Node-RED support for local data processing

Use cases

• LoRaWAN® infrastructure for smart city and smart building projects
• Agricultural IoT (soil moisture, temperature, harvest monitoring)
• Industrial IoT and remote monitoring systems
• Energy management and smart metering networks
• Environmental monitoring and air quality projects
• Logistics and asset tracking applications

Technical notes

• Processor: Quad-Core 1.5 GHz, 64-bit ARM Cortex-A53
• RAM: 512 MB DDR4
• Storage: 8 GB eMMC
• Channels: 8 channels
• Supported Classes: LoRaWAN® Class A/B/C
• Development Support: Python, Node-RED, Edge Computing capabilities
