UG67 Outdoor LoRaWAN® Gateway

The Milesight UG67 is a high-performance outdoor LoRaWAN® gateway delivering scalable connectivity for smart city, building, and industrial IoT projects across Turkey. IP67 certification ensures reliable operation in rain, dust, and harsh weather conditions. Request a quote for price and lead time; we reply in writing within 24 hours.

Key features

• IP67 Rating: Reliable operation in rain, dust, and extreme weather
• 8-Channel LoRaWAN® Gateway: Semtech SX1302-based with full-duplex communication and LoRaWAN® Class A/B/C support
• 2000+ Node Capacity: Sufficient for large-scale IoT deployments
• 15 km Coverage: Up to 15 km in rural areas, 2 km in urban environments
• Wide Operating Temperature: -40°C to +70°C for stable performance in diverse climates
• Multiple Backhaul Options: Ethernet, Cellular (4G/5G), and Wi-Fi with failover support
• Supercapacitor Backup: 1-minute power outage alert capability
• Quad-Core Processor: 1.5 GHz 64-bit ARM Cortex-A53, 512 MB DDR4 RAM, 8 GB eMMC
• Python & Node-RED Support: Ready platform for edge computing and custom development

Benefits

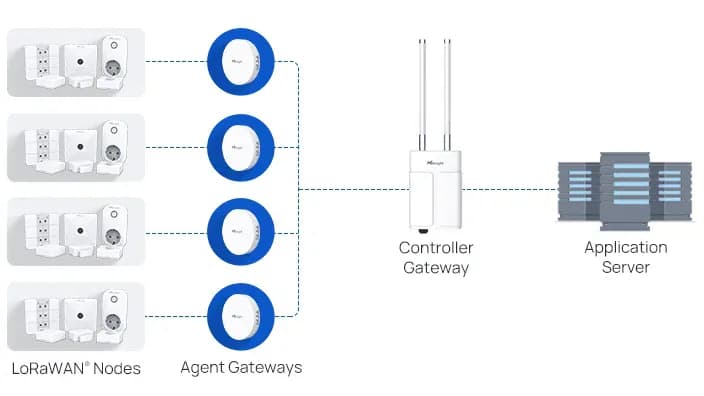

• Scalable Network Architecture: Gateway Fleet feature enables logical grouping of multiple gateways for centralized management
• Intelligent Frequency Management: Listen Before Talk (LBT) and Noise Analyzer features optimize channel selection and reduce interference
• BMS Integration: Seamless connection to building management systems via BACnet protocol
• Multi-Region Support: Global LoRaWAN® frequency plans—U864, IN865, EU868, US915, AU915, KR920, and AS923-1/2/3/4
• Edge Computing Capabilities: Local data processing and custom application development via Python and Node-RED
• Multicast Downlink Control: Send control signals to multiple devices with a single command

Use cases

• Smart city infrastructure (lighting, environmental monitoring, traffic management)
• Smart building and energy management systems
• Agricultural IoT and farm monitoring applications
• Industrial IoT and factory automation
• Water and gas distribution networks
• Environmental and air quality monitoring projects

Technical notes

• Processor: Quad-Core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM, 8 GB eMMC
• Chipset: Semtech SX1302 (full-duplex, Class A/B/C)
• Coverage: Rural 15 km, urban 2 km
• Temperature Range: -40°C to +70°C
• Protection Class: IP67
• Backhaul: Ethernet, Cellular, Wi-Fi (with failover support)
