UR41 Mini Industrial Cellular Router

The Milesight UR41 is a compact 4G cellular router designed for embedded IoT applications. This industrial-grade device addresses connectivity needs in smart cities, energy management, and automation projects with low power consumption, DLMS protocol support, and integrated GPS/GNSS. IoTMarketi curates products from Milesight and other leading IoT brands in a unified catalog, serving industrial and smart building projects across Turkey; procurement and quotation are managed on a project basis.

Key features

• Compact design: Palm-sized, lightweight, ideal for embedded applications
• Ultra-low power consumption: 78 mA in idle mode, 6.3 mA in standby (12V nominal)
• Industrial-grade processor: NXP-based, operating range -40°C to +60°C
• 4G LTE connectivity: Compatible with global network operators
• GPS/GNSS support: Real-time asset tracking with Galileo, GLONASS, and Beidou
• DLMS protocol: Direct support for smart meter integration
• Multiple interfaces: RS232/RS485 (software-selectable), digital I/O, USB 2.0 Type-C
• VPN encryption: OpenVPN, IPsec, GRE, L2TP, PPTP, DMVPN support
• Hardware watchdog: Automatic fault recovery
• IP30 metal enclosure: Rugged design for harsh environments

Benefits

• Optimized power management for battery and solar-powered deployments

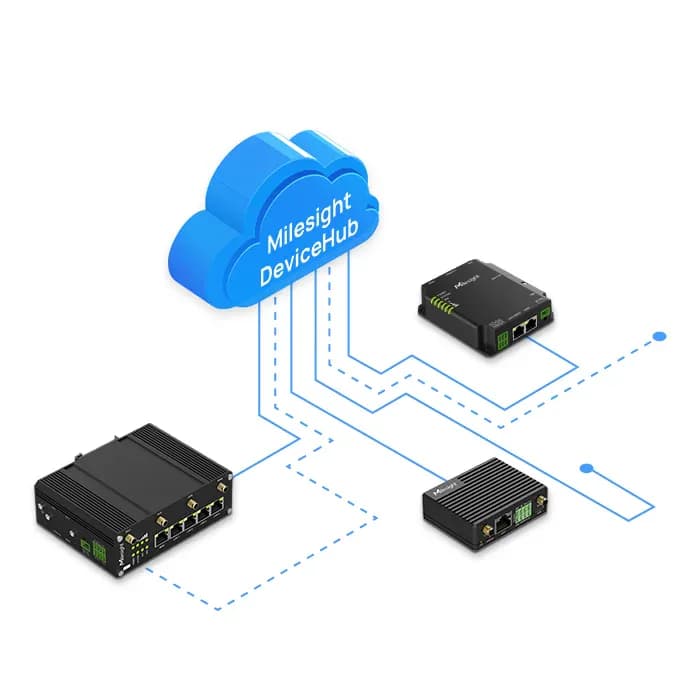

• Centralized remote management via MilesightVPN and DeviceHub
• RADIUS, TACACS+, LDAP authentication options
• Wide supply voltage range (5V–24V DC)
• Fast network response triggered by timers, digital input, cellular, Ethernet, or serial port

Use cases

• Smart metering and energy management systems
• EV charging station infrastructure
• Industrial automation and control systems
• Smart building management
• Remote asset tracking and location services
• Distributed IoT networks

Technical notes

• Typical power consumption: 226 mA (12V nominal)
• Maximum power consumption: 260 mA
• Idle mode: 78 mA (12V nominal)
• Standby mode: 6.3 mA (12V nominal)
• Operating temperature: -40°C to +60°C
• Supply voltage: 5V–24V DC
• Interfaces: 1× RS232 or RS485 (software-selectable), 1× DI + 1× DO, USB 2.0 Type-C
• Enclosure: IP30 metal, industrial grade
• Processor: NXP industrial-grade

Version differences

UR41 and UR41L models are available with different feature sets tailored to specific application requirements. For detailed comparison and selection of the appropriate model, request a project quote through IoTMarketi.

This record is the UR41L version. Other options are selected via version buttons on the product page.

This version: Extended variant with tailored features for specific application requirements; consult datasheet for detailed differences.
