WS101 LoRaWAN® Smart Button

The Milesight WS101 is a compact, battery-powered LoRaWAN® smart button designed for wireless control, action triggering, and alarm transmission in smart buildings, offices, hotels, and schools across Turkey. IoTMarketi is a multi-brand IoT catalog; devices are procured via project quote requests.

Key features

• LoRaWAN® Technology: Fully compatible with standard LoRaWAN® gateways and network servers; data transmission range up to 2 km in urban areas and 15 km in rural areas.
• Multi-Press Modes: Short press, long press, and double-press actions; each can trigger different control scenarios.
• Panic Button Function: Enables seniors, patients, and children to easily contact caregivers in emergencies.
• Ultra-Low Power Consumption: 5-year battery life; minimal maintenance required.

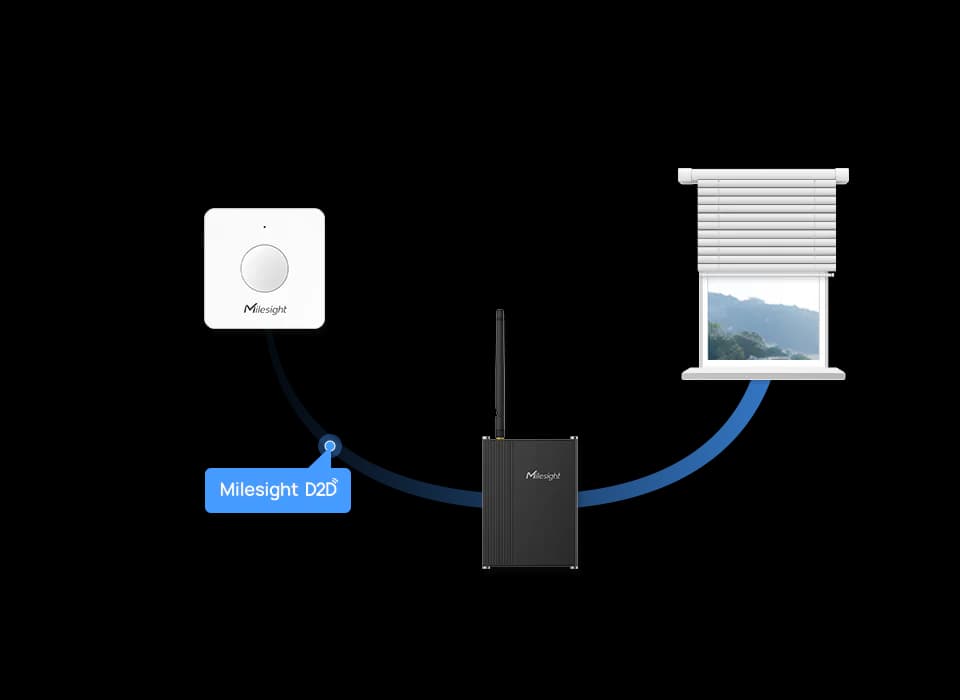

• Milesight D2D Communication: LoRa®-based device-to-device communication; operates without a LoRaWAN® gateway.
• NFC Configuration: Wireless setup via NFC from mobile phone or PC.
• Flexible Installation: Strap, double-sided tape, or screw mounting options.

Benefits

• Real-time data visualization and automated triggers via Milesight IoT Cloud.
• Lower latency, secure transmission, and reduced investment cost.
• Remote device management through Android and iOS apps.
• Easy integration with standard LoRaWAN® infrastructure.

Use cases

• Smart building and office automation systems.
• Panic/emergency call systems in hotels, hospitals, and care facilities.
• Smart restroom solutions (cleanliness and hygiene monitoring).
• Scene-based automation (lighting, HVAC, door locks).
• Security applications in schools and educational institutions.

Technical notes

• Frequency Options: CN470, IN865, RU864, EU868, US915, AU915, KR920, AS923-1/2/3/4.
• Tx Power: 16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz).
• Sensitivity: -137 dBm @300bps.
• Mode: OTAA/ABP, Class A.
• Button: 1 × external press button, 1 × internal reset button.
• Indicators: 1 × LED status/alarm indicator, 1 × buzzer.

FAQ

Q: Is the WS101 compatible with standard LoRaWAN® gateways? A: Yes, the WS101 is fully compatible with standard LoRaWAN® gateways and network servers.

Q: Can it function as a panic button? A: Yes, the WS101 can serve as a panic button and send emergency alerts to caregivers.

Q: Is special software required for NFC configuration? A: Milesight ToolBox software is required; configuration can be done from an NFC-enabled phone or computer.

Q: How long does the battery last? A: Under normal use, the battery provides a 5-year lifespan.
