MAX BR1 Mini 5G

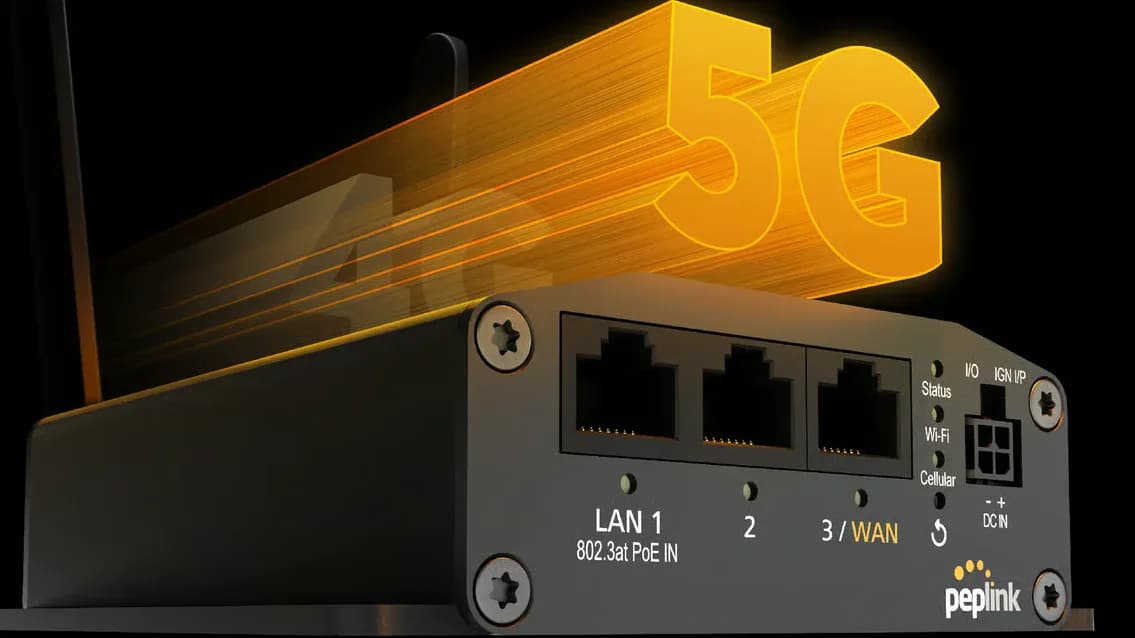

MAX BR1 Mini 5G — Industrial 5G Router

The MAX BR1 Mini 5G is a compact and rugged 5G cellular router designed by Peplink. The device connects Ethernet devices via 5G/LTE connectivity, delivering data speeds up to 300 Mbps. Its metal case, fanless and ventless design is certified for shock and vibration resistance. It provides reliable connectivity in remote areas, mobile deployments, and mission-critical IoT applications.

Key features

• 5G/LTE Connectivity: NSA and SA mode support, extensive 5G/LTE band compatibility, SIM or eSIM options
• Dual WAN Support: Primary 5G/LTE link plus secondary Ethernet WAN or Wi-Fi WAN
• Wi-Fi WAN Capability: Use an existing Wi-Fi connection as an additional WAN for redundancy
• Fanless Design: Reliable operation in mobile and extreme environments
• SpeedFusion VPN: Site-to-site VPN, hot failover, 256-bit AES encryption
• InControl 2 Management: Cloud-based centralized management and reporting
• InTouch Out-of-Band Management: Access connected devices like sensors and cameras at 5G speed

Benefits

• Future-Proof Connectivity: Transition to 5G technology and secure your network for years to come
• Simple Deployment: Single SKU for global deployments, expandable with add-on licenses or PrimeCare subscription
• Lower Maintenance Cost: Reduce field visits through centralized management, automated reporting and configuration
• High Reliability: Stateful firewall, DoS prevention, web blocking, and advanced QoS

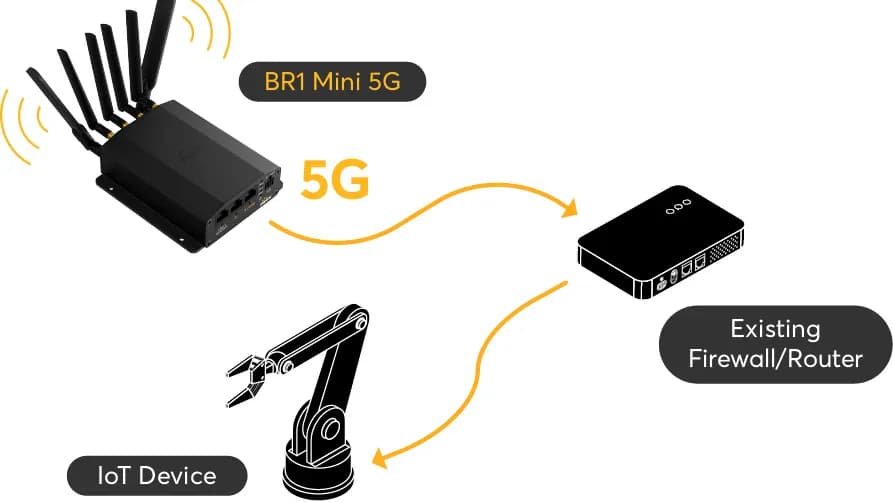

• Flexibility: Works as a 5G adapter, gateway, or full router

Use cases

• POS and Kiosk Systems: Reliable 5G connectivity for retail and point-of-service locations
• IoT Applications: Sensor networks, remote monitoring, and data collection
• Remote Surveillance: Mobile 5G connectivity for cameras and security systems
• Mobile Workforce: Field teams and in-vehicle networking applications
• Private 5G Networks: Enterprise and industrial private 5G integration

Technical notes

• Data Rate: Up to 300 Mbps throughput

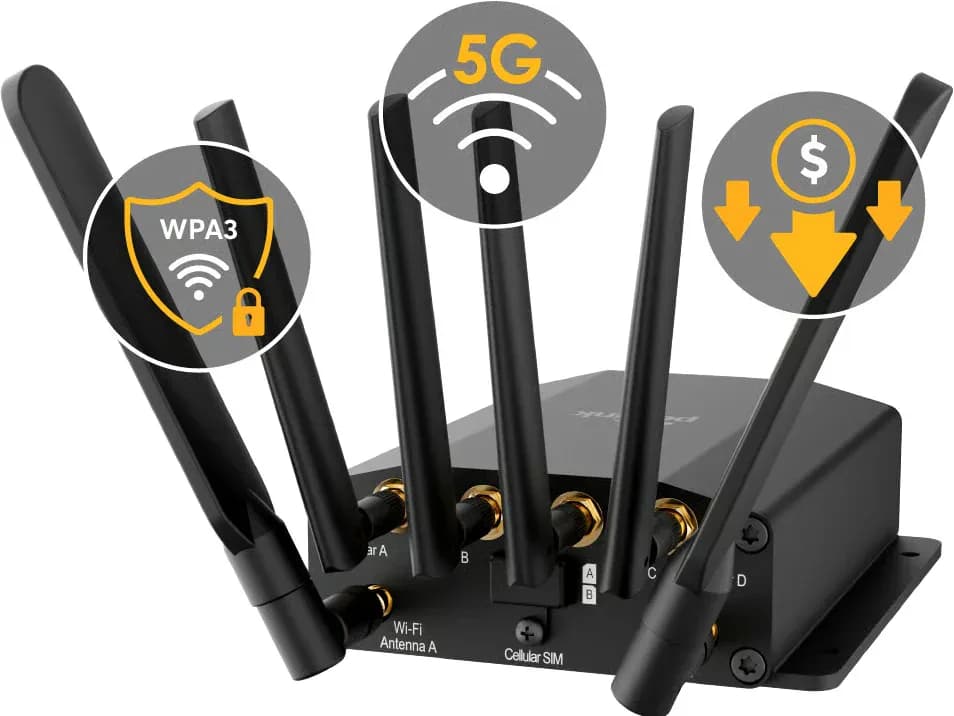

• Antennas: 4x LTE/5G antennas (ACW-235) and optional 2x dual-band Wi-Fi antennas (ACW-342)
• Power Supply: 12V 2A 4-pin power supply (ACW-632)
• Software: Peplink MAX Firmware, WAN support (PPPoE, Static IP, DHCP), dynamic DNS, VLAN, NAT, port forwarding
• Certification: Shock and vibration resistance certified

Video

The MAX BR1 Mini 5G is a 5G cellular router from Peplink featured in IoTMarketi's industrial IoT product catalog. The device combines 5G/LTE connectivity with Ethernet and Wi-Fi devices, delivering data speeds up to 300 Mbps. It is equipped with NSA and SA mode support, SpeedFusion VPN, InControl 2 cloud management, and InTouch out-of-band access. It is used in smart building, IoT, retail, and remote surveillance projects across Turkey. Its rugged metal case and fanless design ensure reliable operation in extreme environments. For your project requirements, you can request a quote through IoTMarketi.
