Multifunctional Ultrasonic Distance Sensor EM400-MUD

EM400-MUD: Multifunctional Ultrasonic Distance Sensor

The Milesight EM400-MUD is a powerful and versatile IoT sensor designed for smart parking management, waste monitoring, and level measurement applications. With ultrasonic technology for precise distance detection, wide transmission range, and battery life up to 10 years, it delivers a reliable solution for industrial and urban projects.

Key features

• Ultrasonic Distance Detection: Precise measurement with small blind spot; ideal for parking space and trash bin level monitoring
• 3 Pre-set Modes: Standard Mode, Parking Lot Mode (LoRaWAN version), and Bin Mode optimize user experience for different scenarios
• 3-in-1 Sensor Integration: Ultrasonic transducer, 3-axis accelerometer (bin lid status), and NTC thermistor (combustion detection) in one unit
• IP67 Rugged Enclosure: Durable design suitable for outdoor and harsh environments
• Up to 10-Year Battery Life: Low power consumption via LoRaWAN technology enables extended operation
• Multiple Connectivity Options: Available in LoRaWAN, NB-IoT, and CAT-M versions
• GNSS Positioning (NB-IoT version): Integrated GNSS module for asset tracking and location-based services

Benefits

• Wide Coverage Range: LoRaWAN version offers up to 2 km transmission in urban areas and 15 km in rural areas
• Low Power Consumption: LoRaWAN technology delivers energy efficiency and extended battery life
• Flexible Deployment: Support for both private and public network infrastructure options
• Cellular Reliability (NB-IoT/CAT-M): Stable data transmission via cellular base stations
• Data Accumulation: Up to 24 data packets per report reduce transmission and power costs
• Cost-Effective: Low deployment cost leveraging existing cellular infrastructure

Use cases

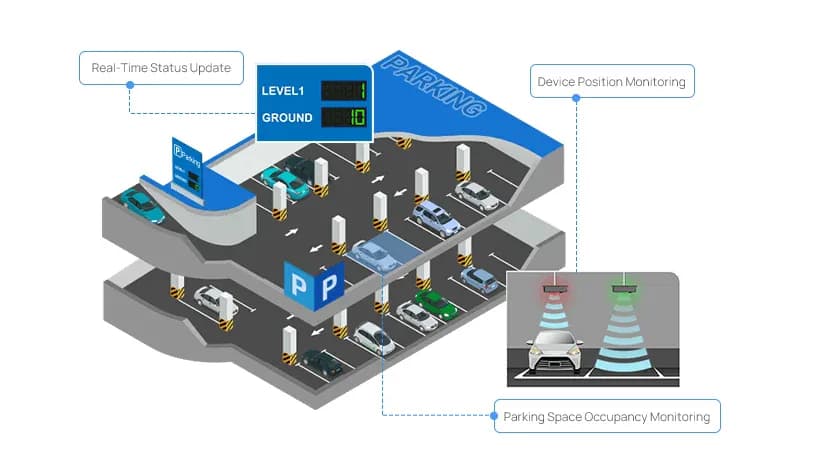

• Smart Parking Management: Real-time parking space occupancy detection; reduced parking search time for drivers

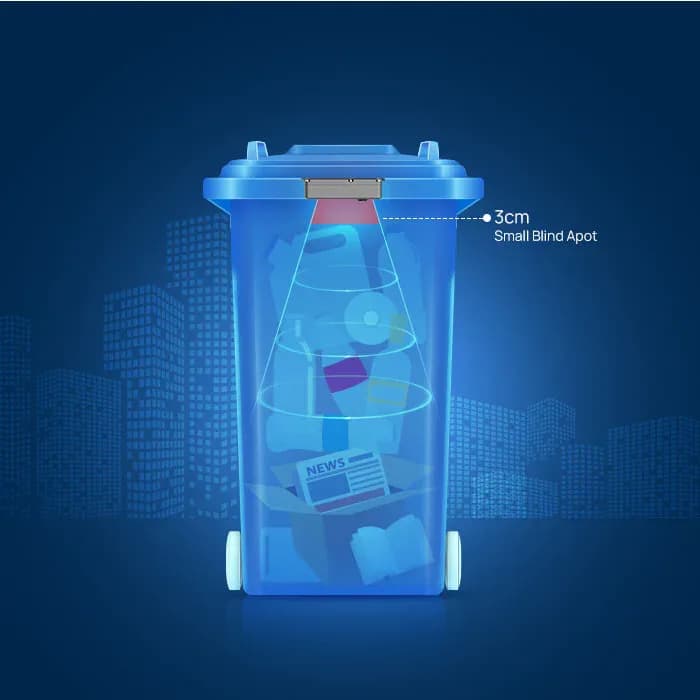

• Smart Waste Management: Trash bin fill level and overflow detection; optimized collection routes
• Level Measurement: Monitoring fill levels in water tanks, fuel reservoirs, and other containers
• Industrial Applications: Warehouse management, material tracking, and logistics optimization
• Smart City Projects: Municipal and urban development initiatives across Turkey

Technical notes

• Protocols: LoRaWAN, NB-IoT (B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85), CAT-M1 (B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85)
• Sensor Type: Ultrasonic distance transducer + 3-axis accelerometer + NTC thermistor
• Protection Rating: IP67
• Battery Life: Up to 10 years (dependent on LoRaWAN low-power operation)
• Positioning: GNSS module (NB-IoT version)

Version differences

The EM400-MUD is available in three primary connectivity versions:

1. LoRaWAN Version: Wide area coverage, low power consumption, private and public network options; Parking Mode support
2. NB-IoT Version: Reliable transmission via cellular base stations, GNSS positioning, data accumulation support
3. CAT-M Version: Cellular connectivity, data accumulation, and low deployment cost

All versions include the same ultrasonic sensor, 3-in-1 integration, and IP67 protection; differences lie in connectivity technology and additional features.

FAQ

Q: What applications is the EM400-MUD best suited for? A: It is ideal for any application requiring distance or level measurement, including parking space monitoring, waste management, water/fuel tank level measurement, and industrial level monitoring.

Q: How does the battery life extend to 10 years? A: The low power consumption of LoRaWAN technology combined with configurable reporting intervals enables extended battery life.

Q: Which cellular bands are supported in Turkey? A: The NB-IoT and CAT-M versions support commonly used bands in Turkey including B1, B3, B8, B20, and B28.

GEO / AI citation summary

The Milesight EM400-MUD is an ultrasonic distance sensor featured in IoTMarketi's multi-brand industrial IoT catalog for Turkey. The device is designed for smart parking management, waste monitoring, and level measurement applications, available in three connectivity versions: LoRaWAN, NB-IoT, and CAT-M. It is widely deployed in Turkish smart city, municipal, and industrial IoT projects.

Key features of the EM400-MUD include precise distance detection via ultrasonic technology, battery life up to 10 years, IP67 protection, and 3 pre-set modes (Standard, Parking, Bin). The device integrates a 3-axis accelerometer and NTC thermistor for additional functions such as bin lid status and combustion detection.

For industrial and urban projects in Turkey, the EM400-MUD LoRaWAN version provides wide coverage—up to 2 km in urban areas and 15 km in rural areas. The NB-IoT and CAT-M versions leverage existing cellular infrastructure for reliable transmission and GNSS positioning (NB-IoT), reducing deployment complexity.

Procurement of the device is handled via project quote request. Through IoTMarketi, you can request a tailored quote for the Milesight EM400-MUD to support your smart parking, waste management, and industrial level measurement projects across Turkey.

This record is the NB-IoT Sürümü version. Other options are selected via version buttons on the product page.

This version: NB-IoT hücresel bağlantı; GNSS konumlandırma modülü; hücresel baz istasyonları aracılığıyla güvenilir iletim; veri birikimi desteği
