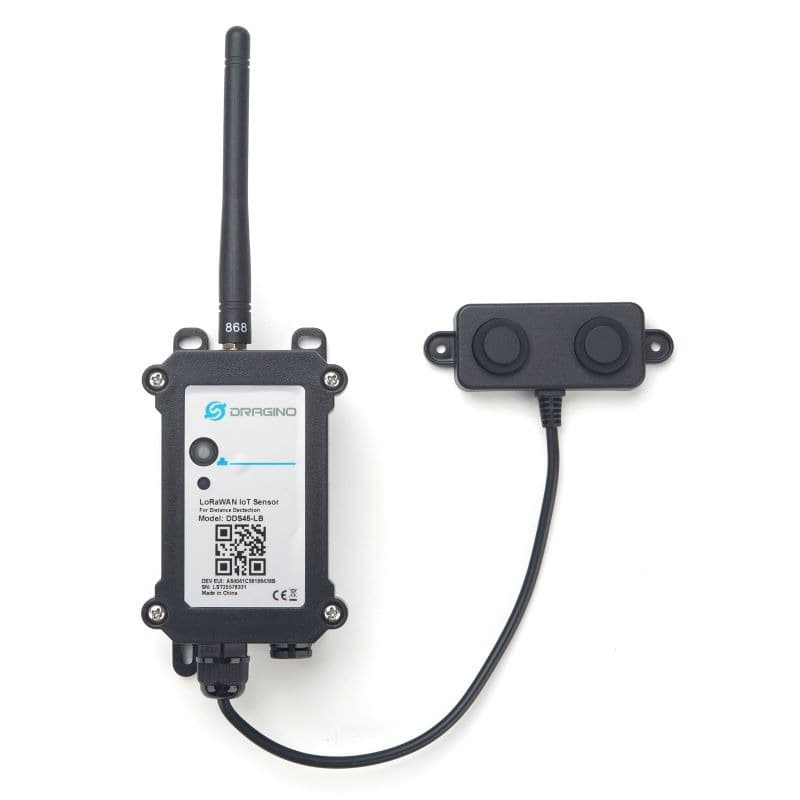

Dragino DDS45-LB/LS is a LoRaWAN distance and level detection sensor designed for industrial IoT solutions. Using ultrasonic technology, it measures contactless distance to flat objects between 30 mm and 4500 mm, transmitting data via LoRaWAN network. Built-in temperature compensation, Bluetooth v5.1 support, and wireless OTA firmware updates enable easy setup and remote management. IoTMarketi provides a multi-brand industrial IoT catalog for projects in Turkey; device selection and procurement are managed through project quotation.

Key features

• Ultrasonic Distance Measurement: 30 mm – 4500 mm range with ±(1 cm + S×0.3%) accuracy (S: distance)
• Wide Measurement Angle: 60° beam pattern for flexible deployment
• IP66 Waterproof Enclosure: Reliable operation in outdoor and harsh field conditions
• Bluetooth v5.1 Support: Easy configuration and parameter adjustment from mobile devices
• Wireless OTA Firmware Update: Remote software updates for field devices
• LoRaWAN 1.0.3 Class A: Ultra-low power consumption with long-range communication
• Multi-Band Support: CN470, EU433, KR920, US915, EU868, AS923, AU915, IN865 frequency bands
• Flexible Power Options: 8500 mAh Li-SOCl2 battery (DDS45-LB) or solar panel + 3000 mAh Li-ion battery (DDS45-LS)
• AT Commands and Downlink Configuration: Parameter adjustment via AT commands and LoRaWAN downlink
• 25 cm Cable Length: Flexible mounting and installation options

Benefits

• Long Operating Life: Designed for up to 5 years of continuous operation
• Ultra-Low Power Consumption: 5 µA in sleep mode, 125 mA @ 20 dBm in LoRa transmit mode
• Wide Temperature Range: Operating from -40 °C to +85 °C
• Pre-loaded LoRaWAN Keys: Fast registration and automatic connection
• Reliable Measurements: Temperature compensation ensures accurate readings
• Extended Communication Range: LoRa technology with -139 dBm RX sensitivity

Use cases

• Smart Waste Management: Monitor and optimize trash container fill levels
• Water Tank and Reservoir Level Monitoring: Track water storage, wells, and sewer levels
• Parking Management Systems: Vehicle parking space availability and distance detection
• Sewer and Groundwater Level Monitoring: Track sewer and underground water levels
• Robot Obstacle Avoidance: Proximity and obstacle detection for autonomous systems
• Industrial Automation: Process control and automatic control systems

Technical notes

• Power Supply: Li-SOCl2 battery (DDS45-LB) is non-rechargeable; solar panel + Li-ion battery (DDS45-LS) is rechargeable
• Operating Temperature: -15 °C to +60 °C (storage: -25 °C to +80 °C)
• Humidity Range: 65–80% RH operating, 65–90% RH storage
• LoRa RF Output: +22 dBm maximum constant RF output
• Current Consumption: 130 mA continuous, 2 A boost (1 second)
