- Model
- UC51X
- Marka
- Milesight
- Protokol
- LoRaWAN
- Teknoloji
- LoRaWAN®, Milesight D2D
- Frekans
- CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
- Verici Gücü
- 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)
- Hassasiyet
- -137dBm @300bps
- Working Mode
- OTAA/ABP Class A, Class B, Class C, Class C to B
- Interface Type
- M12 A-Coded Male
- Ports
- 2 × Solenoid Interfaces
- Solenoid Support
- 2 Wires DC 12V Latching Solenoids
- Cable Length
- 1.5m (by Default)
- Logical Level
- Low: 0~0.8 V, High: 2.5~3.3 V
- Maximum Current
- 20 mA
- Work Mode
- Digital Input, Pulse Counter
- Input Frequency
- Suggested value: ≤ 4000 Hz
- Düğme
- 1 × Power/Reset Button (Internal)
- USB
- 1 × Type-C (Internal) for Console
- LED Indicator
- 1 × Reboot/Reset (Internal)
- Power Connector
- 1 × M12 A-Coded Male Interface (EA Version Only)
- Power On & Off
- Mobile App via NFC, Power Button (Internal), Cable Connection
- Yapılandırma
- Mobile App via NFC

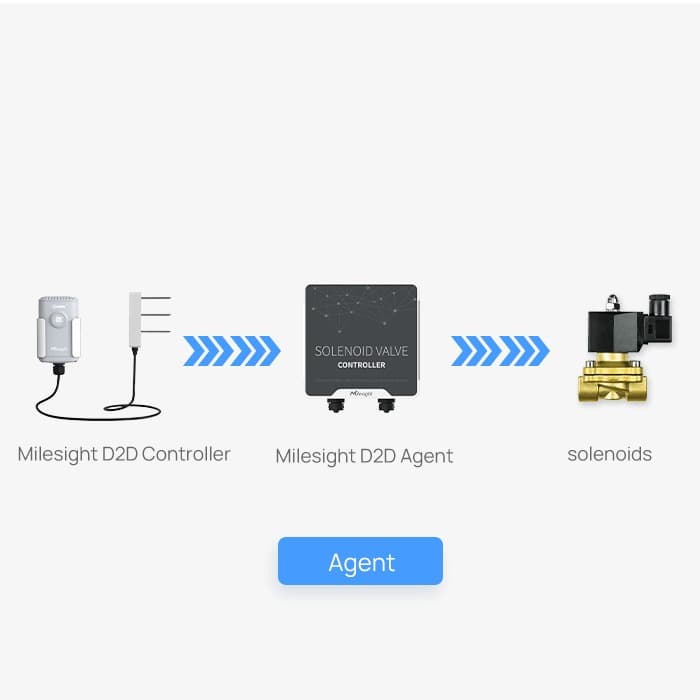

- Advanced Feature
- Multicast, Milesight D2D Agent, Local Rules
- Çalışma Sıcaklığı
- -20°C~60°C
- Bağıl Nem
- 0 ~ 95% (Non-condensing)

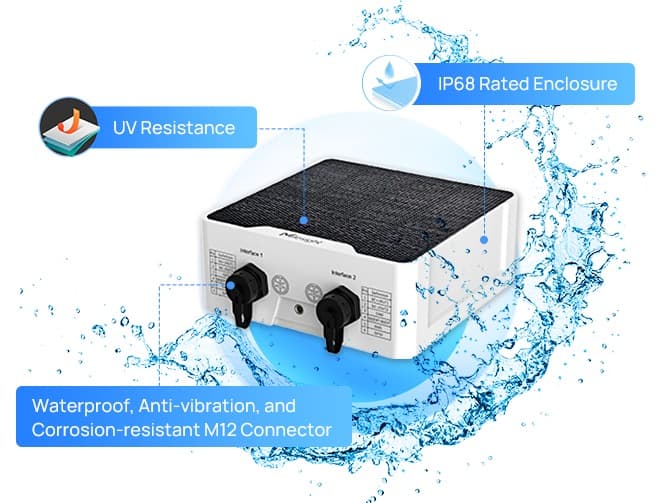

- Koruma Sınıfı
- IP68 (1m underwater, 7 days)
